Step-by-Step Ceramic Printing Workflow How MARKITON Ceramic and Glass Printing Technology Works
The MARKITON Ceramic Printing technology is based on precise image reproduction using ceramic toner followed by high-temperature firing, which permanently fuses the image into the glaze.
This method combines digital precision with the durability of traditional ceramics, resulting in images that do not fade, wash out, or degrade under sunlight, humidity, or time.
1. Printing the Image on Decal Paper

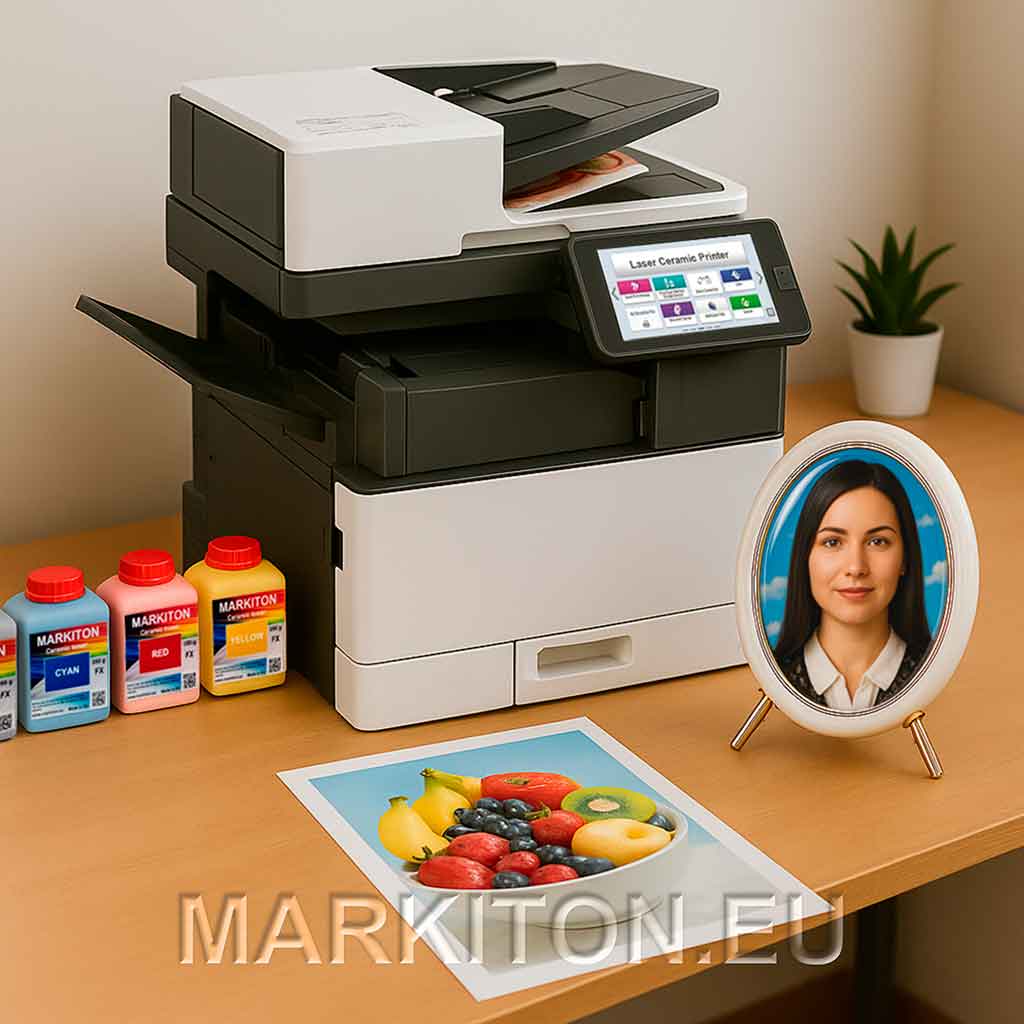

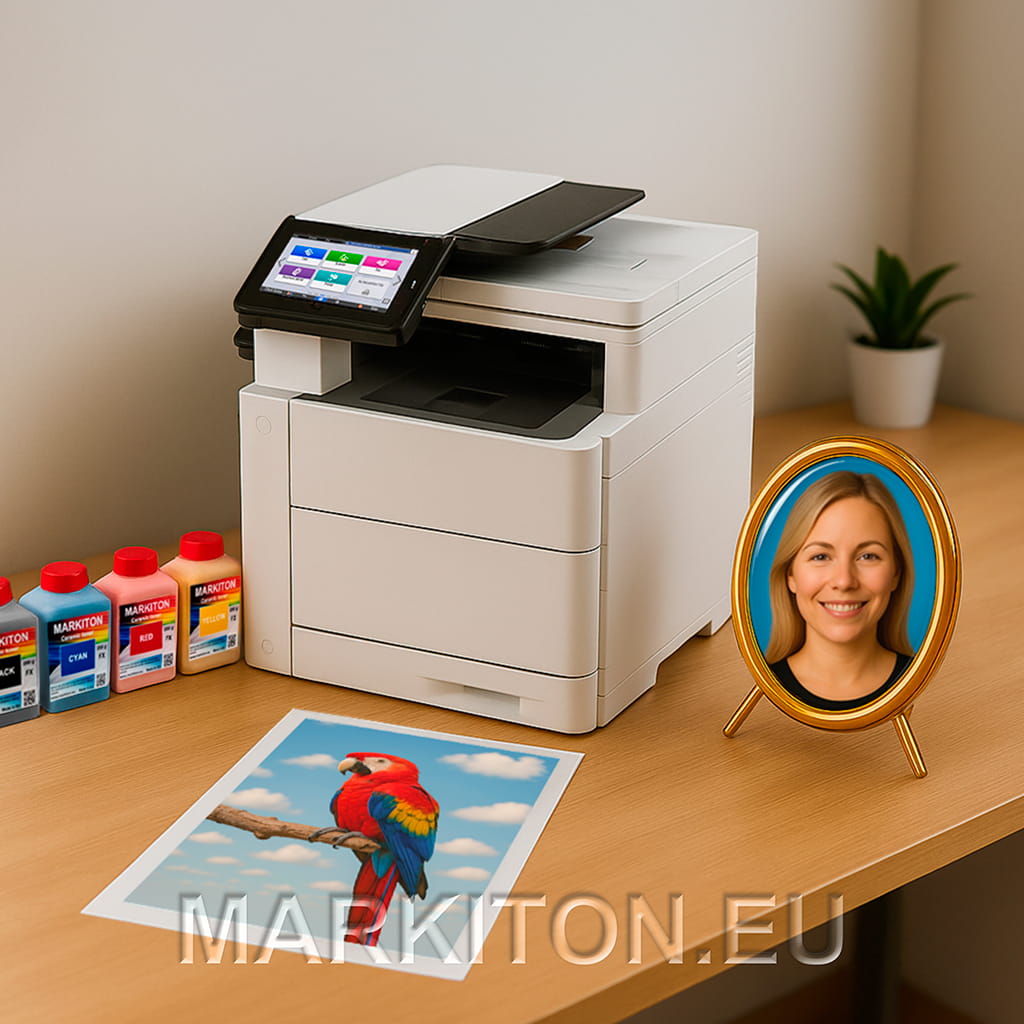

The image is printed on specialized ceramic decal paper using MARKITON laser printers — A4-300 or A3-300 — equipped with a modified ceramic-toner delivery system.
MARKITON ceramic toners are used depending on the application:
The printer applies the image onto EDP-series decal paper, which has a microfilm layer that holds the ceramic pigment in place until it is transferred onto the surface.
2. Transferring the Image onto Ceramic or Glass
After printing, the decal sheet is immersed in water.
Within 30–60 seconds, the upper film layer with the image separates from the backing paper.
The film is then gently positioned onto the surface:
Thanks to the elasticity and stability of the microfilm, the image lays smoothly, without bubbles or wrinkles.
3. Drying and Applying Decal Coating (if required)
Before firing, the decorated item must dry at room temperature or under a warming lamp.
If you are not using EDP-series papers and are working with classic decal paper, a decal coating is required.
MARKITON coatings (MKV series) create a uniform base layer for correct image transfer:
Once printed, the coated decal is submerged in water, released from the backing paper, and transferred to the product.
4. Firing in the Kiln or Muffle Furnace
The firing stage is the key to durability.
Temperature depends on the toner and the substrate:
| Material | Toner | Firing Temperature |
|---|---|---|
| Ceramic | MARKITON LX | 830–890 °C |
| Photoceramic | MARKITON FX | 830–890 °C |
| Glass | MARKITON GX | 530–630 °C |
During firing, ceramic pigments melt and bond with the glaze or glass surface, forming a fully integrated, weather-resistant image.
5. Finished Product
After cooling, the image becomes:
Ideal for:
Training and Technical Support
All MARKITON users receive access to:
- firing and transfer instructions
- detailed print setup and color-management guides
- video tutorials
- online support for material selection and profiling
Our specialists help optimize production and eliminate defects.
Where MARKITON Technology Is Used
production of photoceramic memorial portraits and porcelain ovals
architectural and interior ceramic and glass decoration
souvenir and gift production
promotional and corporate items
artistic and decorative objects
SEO Keywords Included Naturally
- how photoceramic printing works
- ceramic decal process
- printing on ceramic and porcelain
- ceramic toner firing
- decal printing workflow
- glass ceramic printing
- photoceramics technology
- ceramic printing
Why MARKITON Technology Performs Better
Complete compatibility — printers, toners, papers, and coatings are engineered as a single system
Natural, stable color reproduction
High detail and smooth gradients
Quality control of every toner batch
Verified firing curves and temperature profiles
Technical support and step-by-step guides
MARKITON provides not just consumables — but a complete, integrated ceramic-printing technology, delivering professional results from the very first print.
